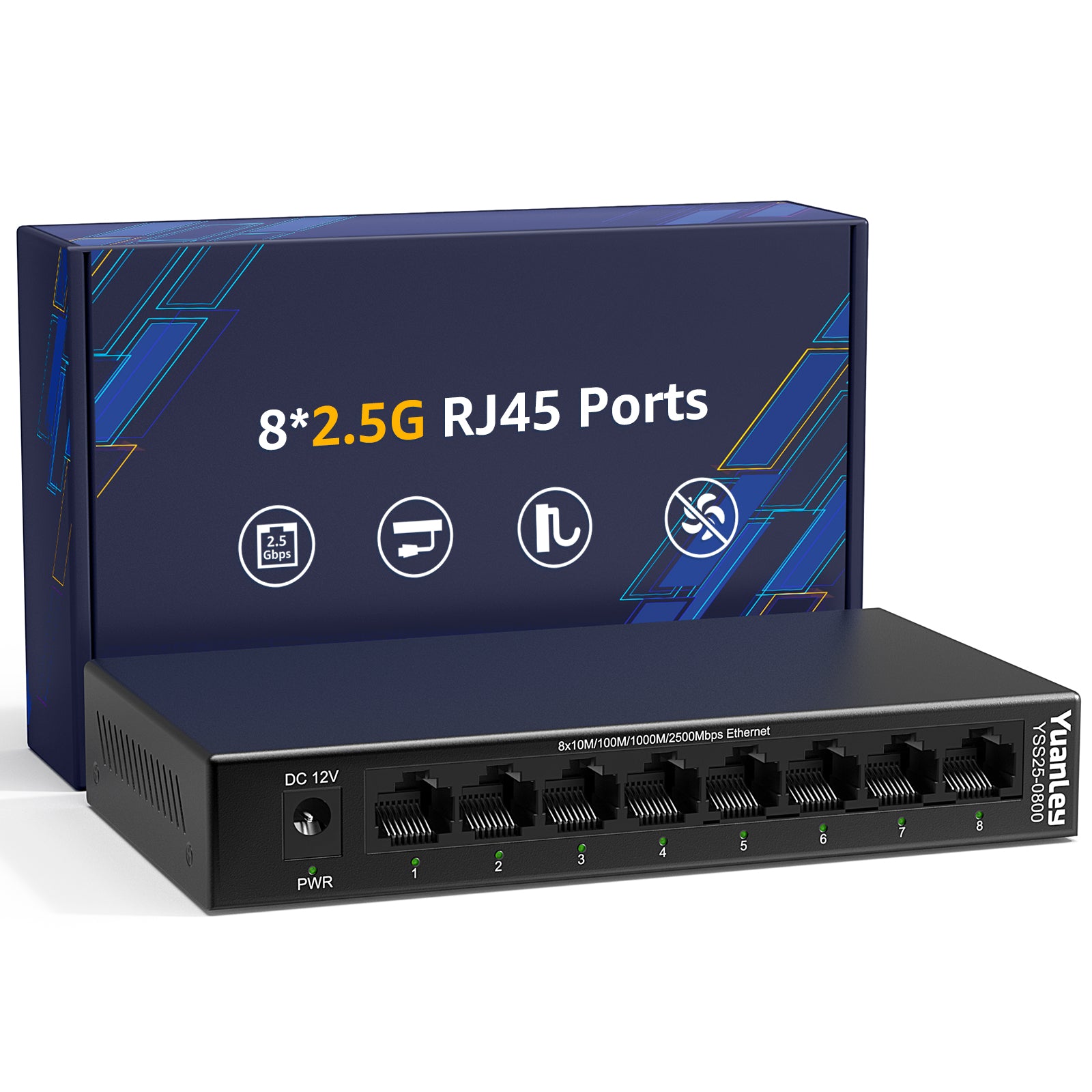

| Product Model | YS25-0800 |
| Ports | 8×10M/100M/1000M/2.5Gbps RJ45 ports |
| Backplane Bandwidth | 40Gbps |
| Power Input | DC 12V/1A |

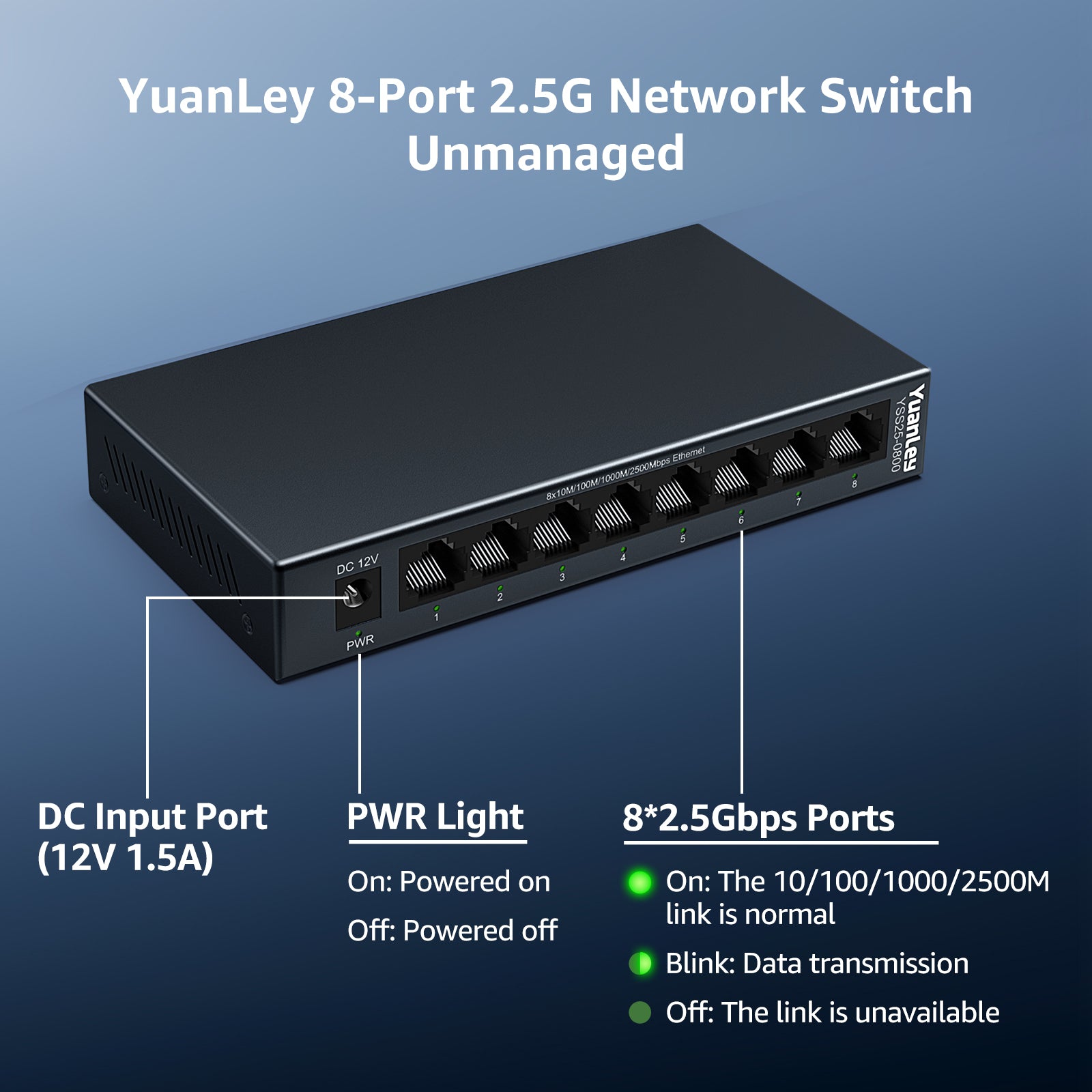

| Indicator Light | Link/Act Indicators, PWR Indicator |
| Working Environment | Operating Temperature: 0°C~45°C (32°F~113°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
| Switching Capacity | 40Gbps |
| MAC Address | 4K |
| Jumbo Frame | 10KBytes |
| Network Protocol | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3bz
IEEE 802.3az |
| Network Medium | 10Base-T: UTP category 3,4,5 cable (maximum 100m)
100Base-TX: UTP category 5,5e cable (maximum 100m)
1000Base-T: UTP category 5e,6 cable (maximum 100m)
2.5GBase-T: UTP category 5e,6 cable (maximum 100m) |
| Packet Forwarding Rate | 29.76Mpps |
