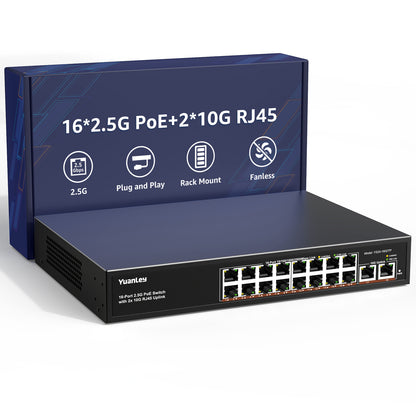

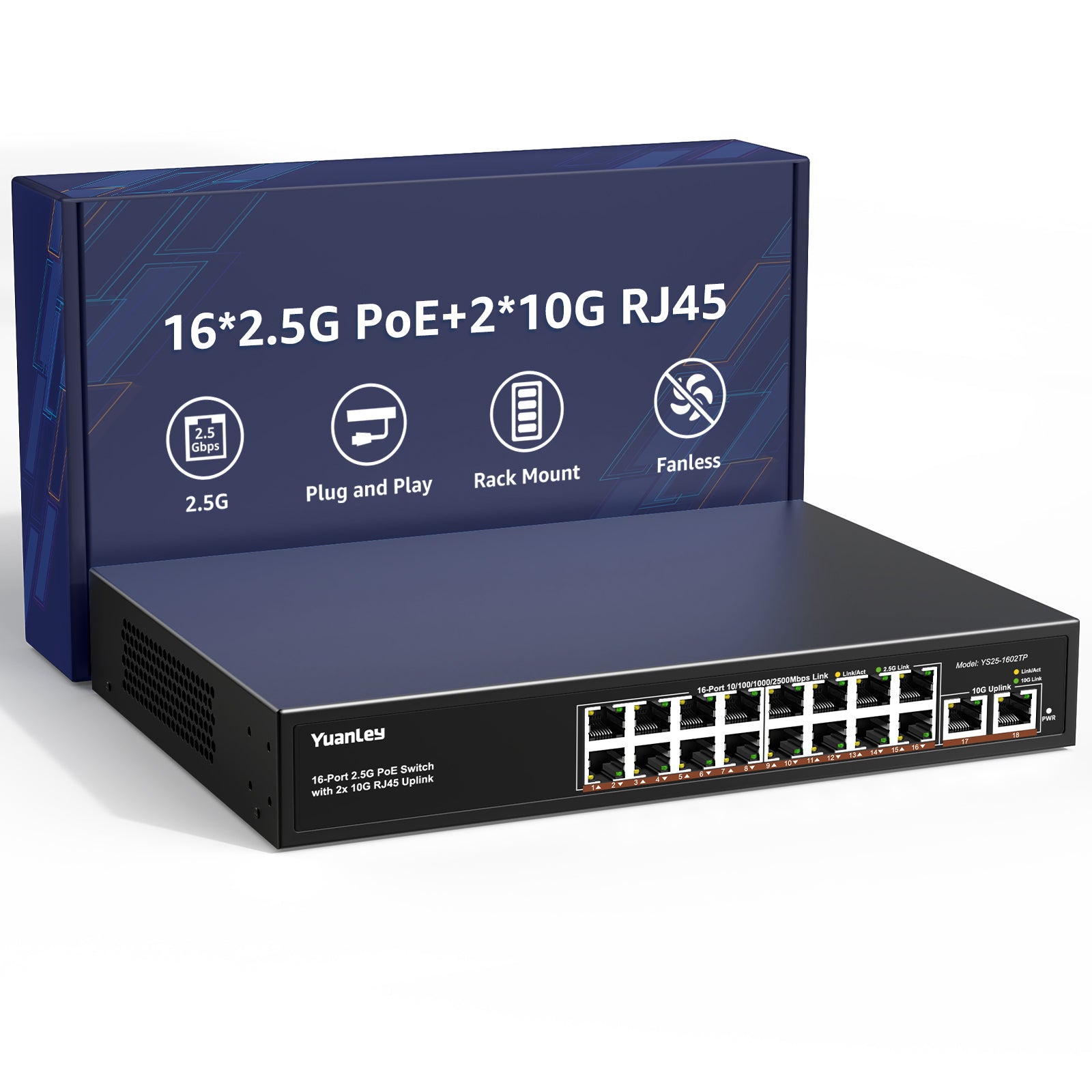

| Product Model | YS25-1602TP |
|---|
| Ports | 6×10/100/1000/2500Mbps RJ45 PoE Ports, 2×10G RJ45 Ports |
|---|
| Backplane Bandwidth | 120Gbps |
|---|
| Power Input | AC 100-240V |
|---|

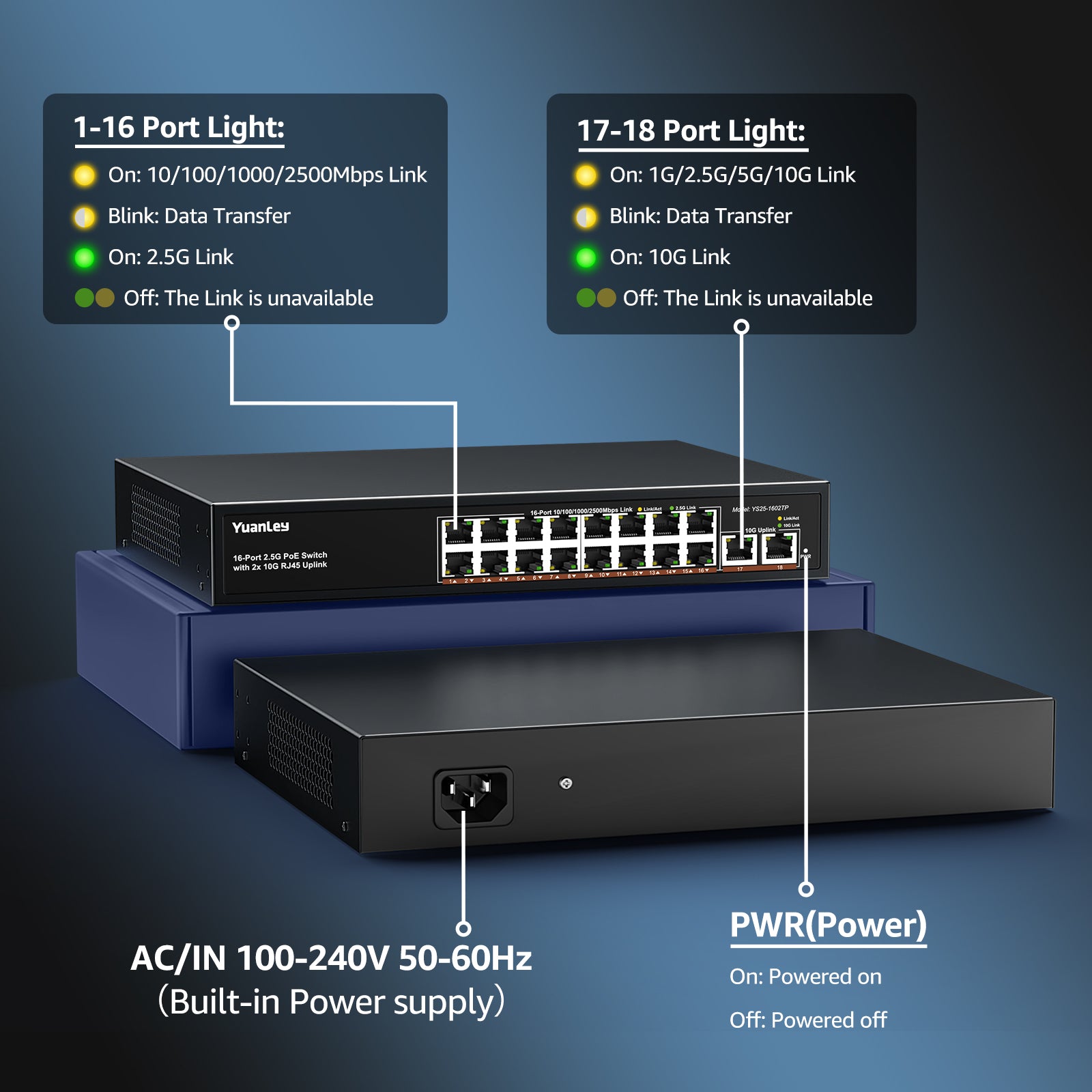

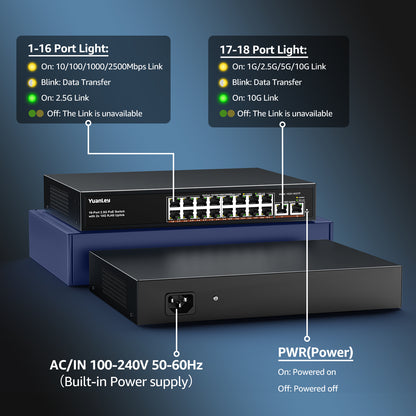

| Indicator Light | PWR: On = Powered on, Off = Powered off
1-16 Green Indicator: On = 2.5G Link connected, Off = Link off
1-16 Yellow Indicator: On = 10/100/1000M/2.5G Link connected, Off = Link off
Flashing = Data transmission |
|---|
| Working Environment | Working Temperature: 0°C~45°C (32°F~113°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
|---|
| Switching Capacity | 120Gbps |
|---|
| MAC Address | 16K |
|---|
| Jumbo Frame | 12KBytes |
|---|
| VLAN | 4096 |
|---|
| Network Protocol | IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3bz (2.5G Ethernet)
IEEE802.3cb (10G Ethernet)
IEEE802.3x (Flow Control)
IEEE802.3at
IEEE802.3af |
|---|
| Industry Standard | EMI: FCC Part 15, CISPR32 (EN55032) Class A
EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
|---|
| Network Medium | 10Base-T: UTP category 3,4,5 cable (maximum 100m)
100Base-TX: UTP category 5,5e cable (maximum 100m)
1000Base-T: UTP category 5e,6 cable (maximum 100m)
2.5GBase-T: UTP category 5e,6 cable (maximum 100m)
10GBase-T: UTP Cat 6 (maximum 55m) or STP Cat 7 (maximum 100m) |
|---|
| MTBF | 50000 Hours |
|---|
| Packet Forwarding Rate | 89.28Mpps |
|---|
