YuanLey 8-Port Industrial Gigabit PoE DIN-Rail Switch, 8 x Gigabit PoE+ Ports, 2 x 1000M SFP, 2 x 1000M Uplink Ports, IEEE802.3af/at 240W, Unmanaged, 24 Gbps Switching Capacity, IP40

• Description
• FAQ

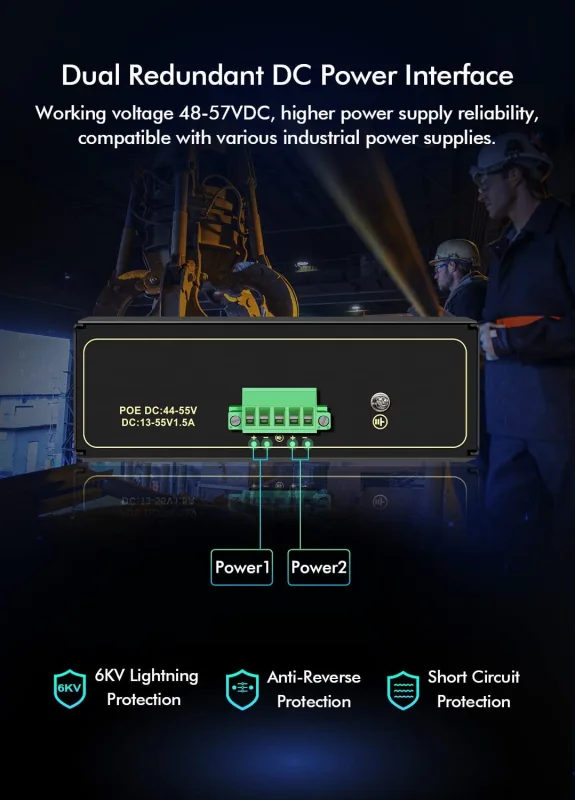

Dual Redundant DC Power Interface Support dual power supply input at the same time. When one of the power supplies is cut off, the switch can still work normally to ensure that the equipment is not powered off.	PoE Ports Supports power supply and data transmission to PoE devices through a single network cable. It is also possible to only transmit data to non-PoE devices.	High Quality Chip, Stable Operation YuanLey industrial-grade switches use industrial-grade switch chips, with fast transmission and more stable performance.





Read more

Technical Specifications

Dimension (LxWxH)	165x147x52mm
Weight	1.1kg
Working Voltage	48-57VDC
Operation TEMP	-40~+80°C

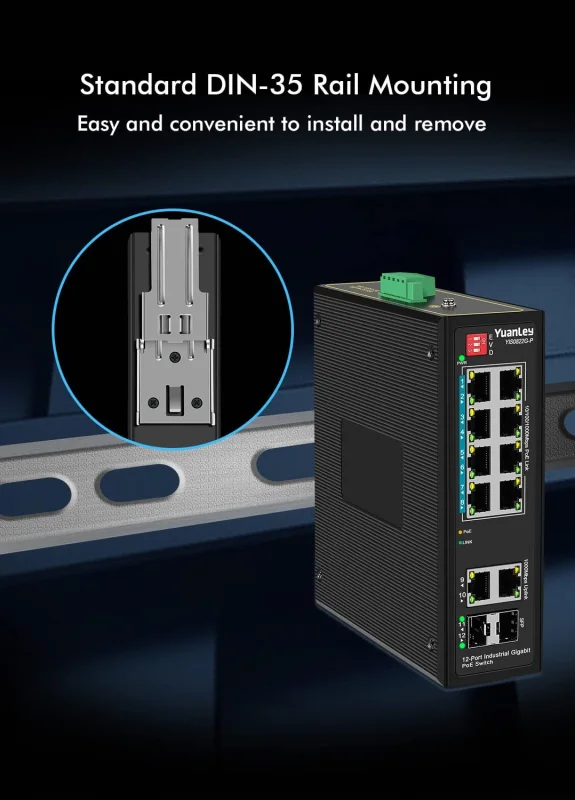

Installation	Desktop, 35mm DIN rail

Lightning protection	6KV
Protection level	IP40
Switching Capacity	24Gbps
Buffer Memory	4M
MAC	16K

	YIS0410F	YIS0410G	YIS0822G-P	YIS0411G-P
PoE Port	N/A	N/A	✓	✓
Port Speed	4x10/100Mbps	4x10/1000Mbps	8x10/100/1000Mbps	4x10/100/1000Mbps
UpLink Port	1x10/100Mbps	1x10/100/1000Mbps	2x10/100/1000Mbps	1x10/100/1000Mbps
SFP Port	N/A	N/A	2x10/100/1000Mbps	1x10/100/1000Mbps
Power Output	N/A	N/A	120W	60W
Switch Capacity	1.0Gbps	10Gbps	24Gbps	16Gbps
Extend Function	N/A	N/A	✓	✓
AI Watchdog	N/A	N/A	✓	✓
VLAN	N/A	N/A	✓	✓
Dimensions (L x W x H)	117 x 56 x 33mm	117 x 56 x 33mm	165 x 147 x 52mm	117 x 86 x 33
