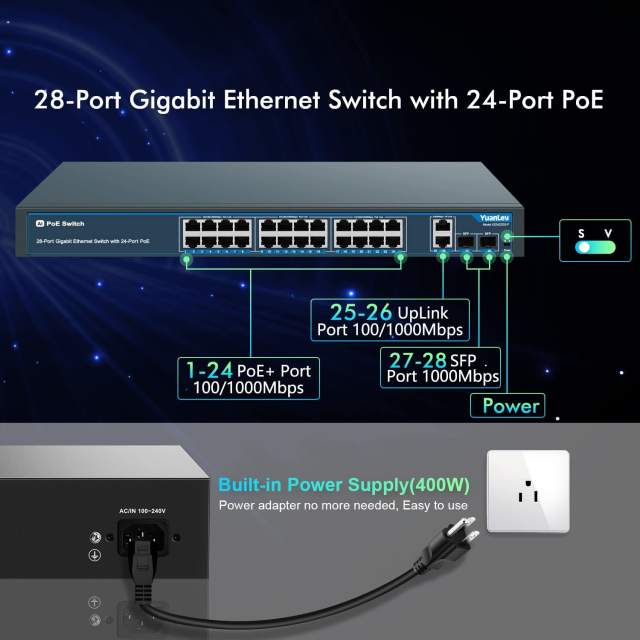

24 Port Gigabit Ethernet PoE Switch with 2 Uplink Gigabit Port & 2 SFP Port, YuanLey Unmanaged 24 Port PoE+ Network Switch, Rackmout, Build in 400W Power, Support 802.3af/at, Plug and Play

• Description
• FAQ





Read more

Auto Detects Power Devices Compatible with 802.3af/at protocol, PoE switch determines and delivers the exact power supply to your devices with up to 30W power output.	Wide Operating Temperature The poe switch with a wide operating temperature range can provide many advantages, especially for applications in demanding environments, such as outdoors, in sealed enclosures .	PoE Watchdog Watchdog technology can automatically detect camera crashes and automatically restart the device.No manual operation is required.





Read more

Long Distance Transmission When you enable link extention mode,PoE switch will deliver power up to 250 meters, perfect for IP cameras or access point deployment in large areas.	Full Gigabit Port The PoE switch is equipped with full gigabit ports,can easily connect with PoE ready devices to your network with plug-and-play design.	Long Distance Transmission with SFP Port The PoE switch features a gigabit SFP port,You can use fiber cable to extend your network to larger areas.





Read more

Rack Mount Design The PoE switch features with rack mount design,It’s in a compact, rugged metal housing with rack mount possibility	Port-Based VLAN When you enable VLAN mode,the PoE port is isolated with each other,but communcate with uplink ports,improve network performance.	6KV Lightning Protection The 6kV surge protection for switch power supply,can protect against lightning risk.





Read more

	YS2041G-P	YS2080G-P	YS2083GS-P	YS20162G-P	YS2422GS-P
PoE Port	4x10/100/1000Mbps	8x10/100/1000Mbps	8x10/100/1000Mbps	16x10/100/1000Mbps	24x10/100/1000Mbps
UpLink Port	1x10/100/1000Mbps		2x10/100/1000Mbps	2x10/100/1000Mbps	2x10/100/1000Mbps
POE Power Output	78W	120W	120W	250W	400W
Switch Capacity	12Gbps	12Gbps	12Gbps	12Gbps	56Gbps
Dimensions (L x W x H)	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	10.6 x 7.1 x 1.7	17.3x 8.3 x 1.7
Weight (lbs)	2.15	2.31	2.31	3.31	5.4
Extend Function	✓		✓	✓	✓
VLAN	✓	N/A	✓	✓	✓
Fan Design	Fanless	Fanless	Fanless	Industrial Cooling Fan	Industrial Cooling Fan
Case Material	Metal	Metal	Metal	Metal	Metal



	YS042F-P	YS2082G-P	YS20162F-P	YS20242F-P	AI-YS082G-P
PoE Port	4x10/100Mbps	8x10/100Mbps	16x10/100Mbps	24x10/100Mbps	8x10/100/1000Mbps
UpLink Port	2x10/100Mbps	2x10/100/1000Mbps	2x10/100/1000Mbps	2x10/100/1000Mbps	2x10/100/1000Mbps
POE Power Output	78W	120W	250W	400W	120W
Switch Capacity	1.4Gbps	10Gbps	12Gbps	12Gbps	20Gbps
Dimensions (L x W x H)	7.9 x 4.7 x 1.7	7.9 x 4.7 x 1.7	10.6 x 7.1 x 1.7	10.6 x 7.1 x 1.7	7.7 x 5 x 1.6
Weight (lbs)	2.15	2.31	3.31	4.62	1.98
Extend Function	✓	✓	✓	✓	✓
VLAN	✓	✓	✓	✓	✓
Fan Design	Fanless	Fanless	Industrial Cooling Fan	Industrial Cooling Fan	Fanless
Case Material	Metal	Metal	Metal	Metal	Metal
